High Speed Recycled Square Bottom Paper Bag Making Machine
Product introduction:
New world-B series automatic square bottom paper bag machine use
paper roll in blank or printed as raw material, consists of automatic centre forward glue, printing tracking, fixed length and
cutting, bottom indentation, folding bottom, bottom glue. Bag
bottom forming, finished bag collecting one time.
The machine is more convenient, more efficient, more stable, can
produce a variety of different paper bags, leisure food bags, bread
bags, dried fruit bags and so on environmentally friendly paper bag
machine equipment.
Main machine parameters:
| Model | New world -B220 | New world -B330 | New world -B400 | New world -B550 |
|
| Paper bag length | 191-430mm | 280-510mm | 280-600mm | 380-770mm |
|
| Paper bag width | 80-200mm | 150-330mm | 150-400mm | 220-550mm |
|
| Paper bag bottom width | 50-120mm | 70-150mm | 90-200mm | 100-210mm |
|
| Paper thickness | 50-140g/m2 | 60-140g/m2 | 70-140g/m2 | 80-140g/m2 |
|
| Machine Speed | 30-250pcs/min | 30-200pcs/min | 30-200pcs/min | 30-150pcs/min |
|
| Paper bag speed | 100-180 pcs/min | 100-160 pcs/min | 100-160 pcs/min | 100-150 pcs/min |
|
| Paper roll width | 290-630mm | 470-990mm | 510-1230mm | 630-1550mm |
|
| Roll paper diameter | 1500mm | 1500mm | 1500mm | 1500mm |
|
| Machine weight | 5600kg | 8000kg | 9000kg | 11000kg |
|
| Machine size | 8600×2600×1900 mm | 9500×2600×1900 mm | 10700×2600×1900 mm | 13000×2600×2000 mm |
|
Performance characteristics:
1. Use MITSUBISHI JAPAN Touch Screen Human-Computer Interface,
operate and control easily.
2. Adopt MITSUBISHI JAPAN Motion Control, integrated with optical
fiber, ensure high speed running steadily.
3. MITSUBISHI JAPAN Servo Motor and Germany Original SICK
Photoelectric Eye Correction, tracking printing bag accurately.
4. Raw material load adopt Hydraulic pressure cylinder up and down
structure, unwinding adopt auto tension control.
5. Raw material unwinding EPC adopt TECHMACH (CHINA), Reduce
adjustment time.

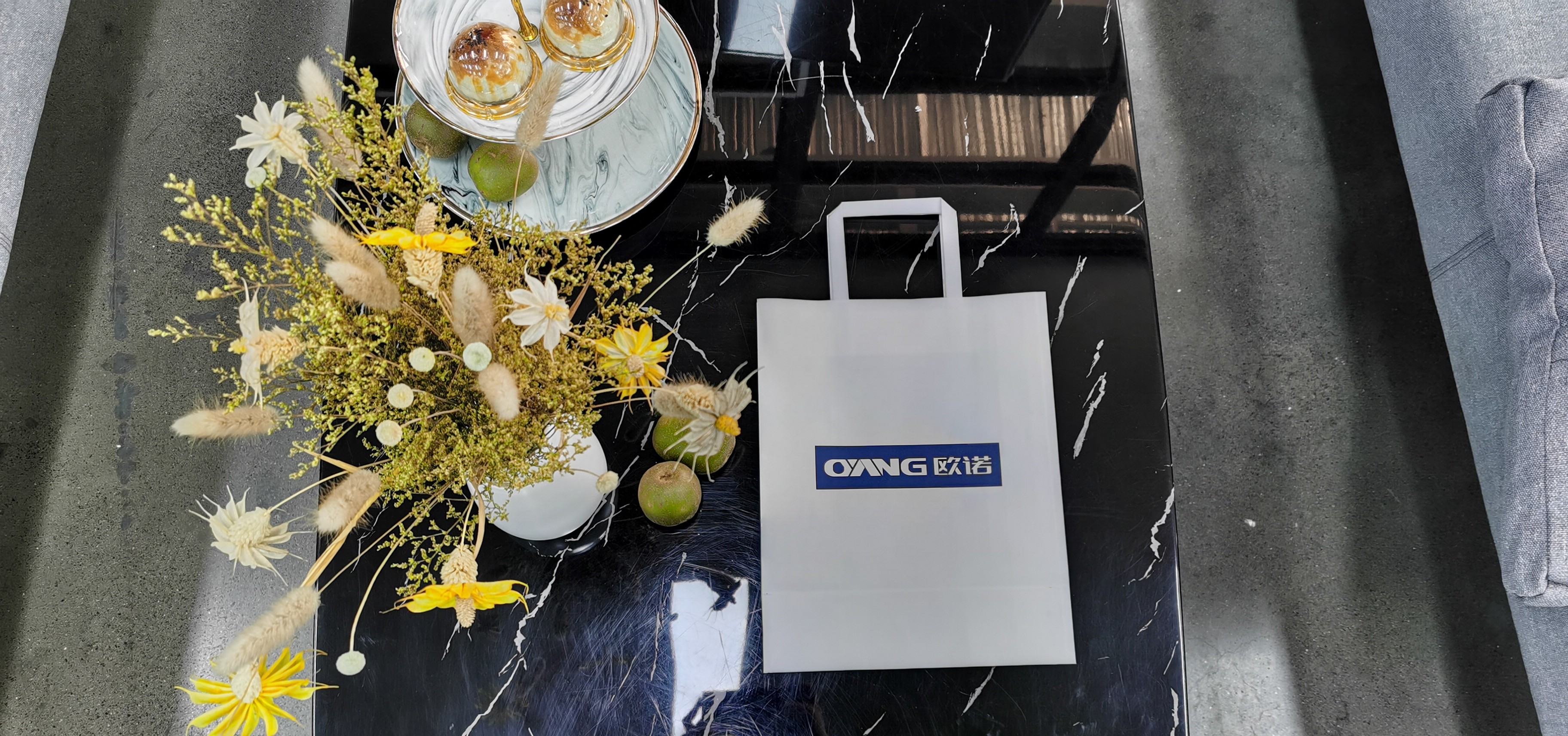

Product display:
ABOUT US:
Wenzhou Ounuo Machinery Co., Ltd. is a professional manufacturer of
non woven bag making machines, nonwoven printing machines, soft
handle sealing machines and relevant equipment. We keep innovating
and learning the latest technology, to provide you with quality
products.
Our company has an area of 8,000 square meters and 130 on-the-job
employees. We have four production lines in total. They are divided
into non-woven bag making machine lines, soft handle sealing
machine lines, flexo printing machine lines and paper cup machine
lines. We can ensure our delivery time within 15 working days.
Our strong and professional sales team will provide you with
details of machine introduction. According to each customer's
different requests, we provide individual and special machine
solutions.
In the future of environmentally friendly packaging industry,
We have excellent competitive products innovative environmentally
friendly production solutions.
And based on close partnerships,
Create value and unlimited possibilities above the needs of our
customers.
FAQ:
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing (
the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full
details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placing
the order?
Before delivery, we will send you the pictures and videos for you
to check the machine quality.
And also you can arrange for quality checking by yourself or by
your contacts in China.
Q4. We are afraid you won't send us the machine after we send you
the money?
We have our business license and certificate. And it is available
for us to use alibaba trade assurance service,guarantee your money,
and guarantee your machine's on-time delivery and machine quality.
Q5: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check
with our shipping agent to quote the shipping cost for your
reference before delivery.
