Eco Friendly 6 Color Flexo Printing Machine , Industrial Fabric Six Color Printer

Ask Lasest Price
Brand Name :	OUNUO/ALLWELL
Model Number :	YT-61200
Certification :	CE
Price :	USD16,000.00/Set
Payment Terms :	T/T,L/C at sight
Supply Ability :	50 set/month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Eco Friendly 6 Color Flexo Printing Machine , Industrial Fabric Six Color Printer

YT-6 Six Color Flexographic Printing Machine With CE

Product Application

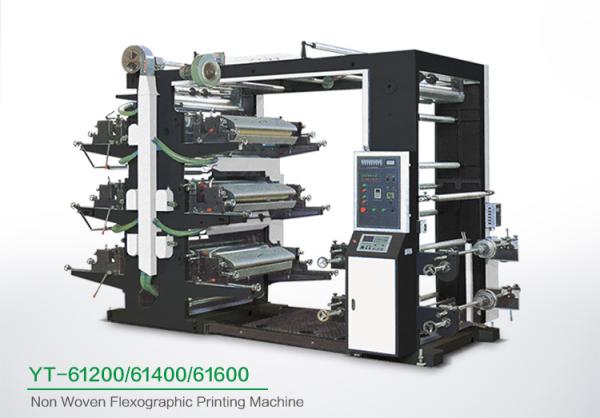

YT-61200/61400/61600 Non Woven Flexographic Printing Machines (6 color)

This machine is ideal equipment for non woven fabric printing. Adopt rubber plate or resin plate to printing non woven fabric with water-based Ink. More eco friendly and machine using automatic magnetic tension control system to ensure uniform tension. roll to roll printing supply more higher effective capacity.

Main Technical Variables
Type	YT-61200	YT-61400	YT-61600
Printing Width	1160MM	1360MM	1560MM
Printing Thickness	100-940MM	100-940MM	100-940MM
Plate Thickness	2.38 MM	2.38 MM	2.38 MM
Speed	10-50M/MIN	10-50M/MIN	10-50M/MIN
Overall Size	5000X2200X2500	5000X2400X2500	5000X2600X2500

Procedure

1. Figure out the fabric width when you get a bag order.
2. Purchase the special width fabric rollers or slitting the general one into right width.
3. Printing according to your customers' requirement.


Flexographic Printing Effect	Screen Printing Effect

Competitive Advantage:

1	Low speed and full load startup; stable running by tension control when increasing and decreasing speed;noise is decreased
2	Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
3	The special made modulus angular gears adopted; accurate printing size and full printing specifications ( 6.35mm is a spec)
4	With single doctor blade and circulating pump
5	The grouped and controlled bottom roller processed with Germany particular steel materials processed with special techniques and electrically gilded with 0.1mm hard chromium protective layers
6	With hard chroming anilox roll
7	The machine use hydraulic printing-roll loading system which can automatically load printing rolls and run inks after the machine alarm working signal.
8	Good quality printing
9	Brilliance color appearance.
10	The operation is easier and more convenient,the register is more accurate,and the lifespan is also longer

Feeding Part

Function:

Air Shaft Winding

Automatic Loading

Correcting Deviation Device Using photoelectric eye to correct deviation automatically.
	Printing Unit Group: Six Printing Way: Plating roll, Plate roll, Net roll, Peel roll
Heating And Dryer Unit Fan drive and heating
	Rewinding Unit Air Shaft Rewinding Automatic Up And Down Loading Magnetic Tension Control Device

Machine Pictures
