    Woven Polypropylene Paper Sacks Making Machine Automatic With CE Certificate

    Ask Lasest Price
    Brand Name : Ounuo
    Model Number : ON-WSA
    Certification : CE
    Price : USD500,000-550,000 SET
    Payment Terms : L/C, T/T
    Supply Ability : 20 sets per month
    Delivery Time : 90 work days
    • Product Details
    • Company Profile

    Woven Polypropylene Paper Sacks Making Machine Automatic With CE Certificate

    Ouyang Brand Automatic Polythene Sacks|Paper Sacks|Woven Polypropylene Sacks Making Machine With CE Certificate


    Woven bags are made from fabric that has been woven to give the fabric strength. The process of weaving involves joining individual threads together to make a single piece of material. Doing this over and over again creates one large piece of cloth.


    1.Machine specification:

    I.Technical Parameter
    Sack width300-600 mm
    Sack length410-910 mm

    Bottom width(B > 160 mm)

    80-180 mm
    Bottom center distance310-680 mm
    Main fabric cutting length510-1090 mm
    Fabric width55-80cm
    Coating Weight(15% PE, 85% PP)17-30 g/m²
    Speed90-120 个/min
    2.Material Specification
    2.1Tubular fabric requirement
    Material specification2.5-5 mm PP tapes
    Fabric Weight55-80 g/m²
    Coating Weight17-30 g/m²
    Coating adhesionMin. 8.1N/30mm
    Width tolerance±7 mm

    Weight tolerance (fabric + coating)

    ±3 g/m²
    Over coatingMax. 5mm
    2.2Flat fabric for patches
    Fabric Weight55-80 g/m²
    Coating Weight(15% PE, 85% PP)17-30 g/m²
    Coating adhesionMin. 8.1N/30mm
    Width tolerance±3 mm

    Weight tolerance (fabric + coating)

    ±3 g/m²

    Electrical,water,air requirement

    Power105 KVA

    Water consumption

    (Max 18°C, 4 bar)

    2m³/h
    Operating pressure6-7 bar
    Air consumption120 m³/h
    Air compressorPrepared by customer

    2.Central Control Unit

    Self-explaining process images for intuitive and comfortable control, several languages available, automatic parameter calculation for the sack production, soft start, creep speed for adjusting the mechanical system and checking the positions in the different stations, plain text alarm system including historical alarm storage, diagnosis system for the different PLC inputs and outputs as well as detection system for overload, short circuit and failure, report management, predefinition of the sack number per package, total output counter, shift production and order management configurable, recipes for Quick Identical Product Changes, different password levels.

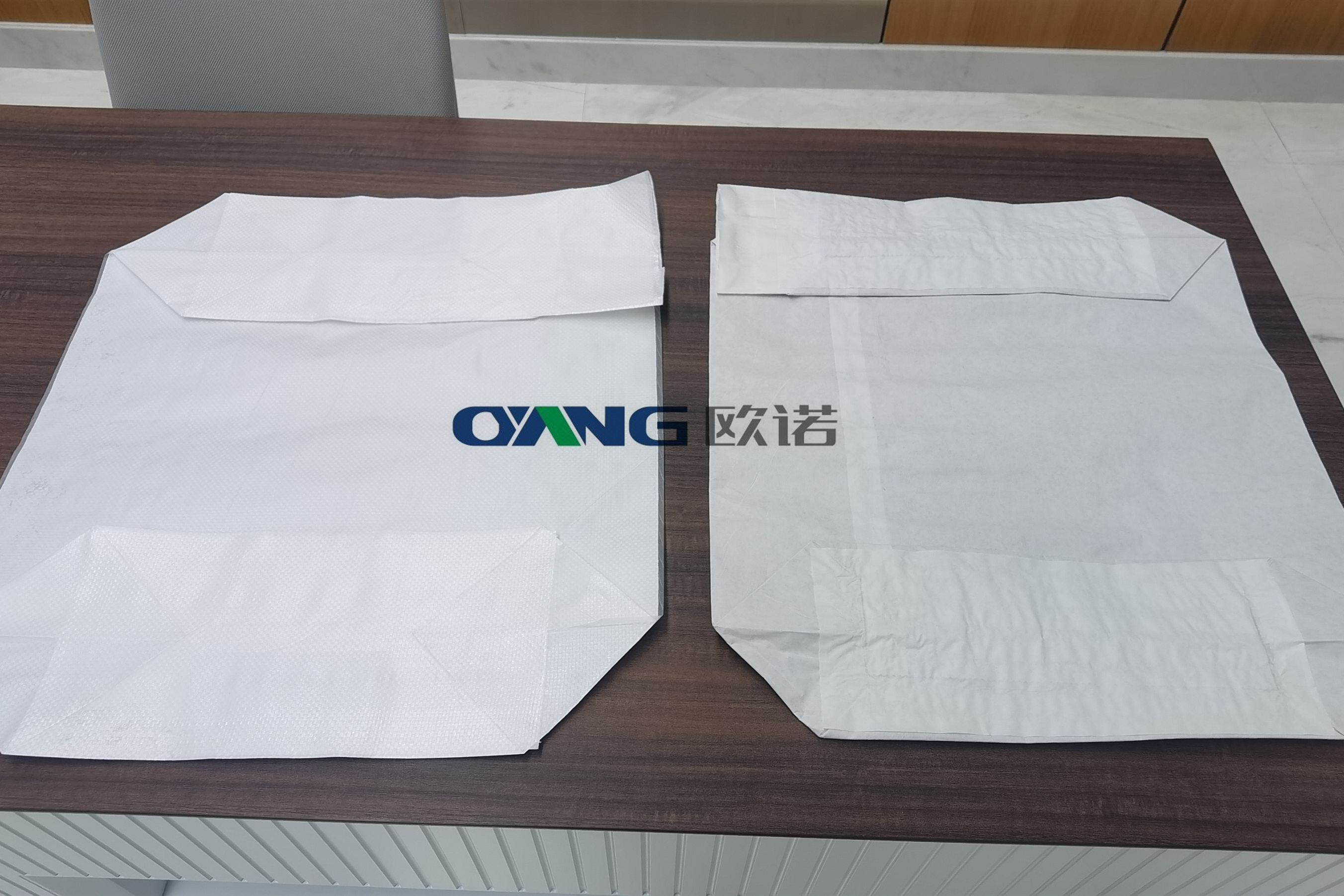

    3.Valve sack bag samples
