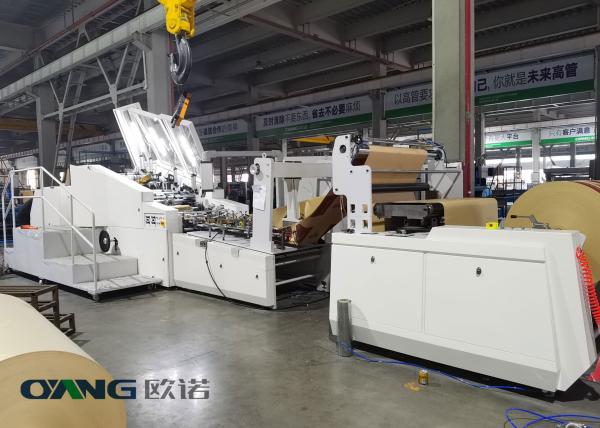

A330 Model High speed 100-150 pcs per /min Square Bottom Paper Bag Making Machine Shopping Bag Gift Bag

Contact : Sara Yang

Mob : 0086-18767715501(whatsapp , viber , wechat)

1.Machine Advantages

01-The forming template adopts symmetrical adjustable double-template structure (proprietary technology), so that users of different sizes of paper bags no longer need to change the template, which can effectively reduce the time of paper bag size adjustment and increase the machine capacity.

02-The special type design greatly improves the bag-making range of the machine, which can meet the customer's demand of producing extra-large hand-held paper bags.

03-The electronic control system imported from Japan is adopted to ensure stable and high-speed operation.

04-Material loading adopts hydraulic automatic lifting structure.The unwinding device adopts automatic tension control.

05-EPC material unwinding adopts ARISE correction to reduce material alignment time.

06-Servo Motor Control System 15pcs

2.Factory facility supporting on production

To ensure high precision standard on parts such as big drum,middle clip,side claws which need very high core density.We invest on high level CNC center.

3.Machine Technical Data

SN	Item	Specification(A330)
1	Paper roll width	470-1050mm
2	Paper Diameter	Φ1500mm (Max)
3	Paper core diameter	Φ76mm
4	Paper weight	80-140gsm
5	Paper bag Width with handle	200-330mm
6	Paper bag Width without handle	150-330mm
7	Paper tube Length with handle	280-430mm
8	Paper tube Length without handle	280-510mm
9	Bottom width of paper bag	80-180mm
10	Machine speed	150pcs/min
11	Total power	32KW
12	Machine weight	16000KGS (40HQ*1)
13	Machine dimensions	L 14000* W 6000* H 2500mm

Handle Size Range (5HD Twisted handle)

SN	Item	Specification
1	Handle rope height	102/115/125/140
2	Handle patch width	45-50mm
3	Handle patch length	114.3mm
4	Handle rope diameter	Φ4-6mm
5	Diameter of handle patch paper roll	Φ1200mm
6	Handle patch paper roll width	90-100mm
7	Rop Distance	95mm
8	Handle patch weight	100-140g

4.Machine parts

SN	Part	Picture
1	Paper material feeding and convey Unit
2	Handle Making Unit (2 units :Twisted handle& flat handle)
3	Handle sticking unit
4	Paper bag forming unit
5	Finished bag collection unit
6	Main Machine Electrical and electronic control

Zhejiang Allwell Intelligent Technology Co., Ltd. is china Leading and professional manufacturer for  non woven bag making machines, nonwoven printing machines, soft handle sealing machines and relevant equipment in 15 years. In year 2019 ,we start our paper bag machine production lines, meanwhiile united  and import newest techenology with Japan famous brand Newport shanghai.

Our company has an area of 130,000 square meters and 400 on-the-job employees. Oyang brand is very famous in global market, we have 120+hundred clients all over the world, and our nonwoven bag machine market share more than 85%. Ounuo Invest USD200 million imported Japan MAZAK,OKUMA high-precision CNC machining center， make high quality spare parts & ensure whole  machine stable usage longtime.

Our strong and professional sales team will provide you with details of machine introduction. According to each customer's different requests, we provide individual and special machine solutions.

Our goal is to serve every customer with 100% confidence and passion.

We are expecting your kind attention.  and Welcome to contact us !  Whatsapp: 008615257791882
