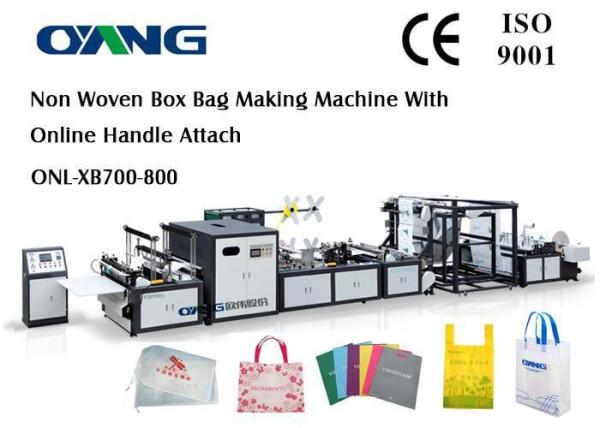

Computerized Fully Automatic Non Woven Bag Making Machine 18kw
Power 220V / 380V
Contact : Sara Yang
Mob : 0086-18767715501(whatsapp , viber , wechat)
Skype : sara.yang64
Bag Making Procedure:
Raw material - Bag mouth fold - thermal bonding - side fold -
bottom sealing - loop handle fix - --
Thermal bonding---edge cut---bag cut---collection
Performance and Characteristics:
1. This machine adopt Taiwan touch screen co
mputer display, PLC computer program which can
be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation,
Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating
controller.
5 It could control auto pneumatic handle punching on machine.
6. Unwinding magnetic powder tension control with manual, Auto
side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth
folding welding, side sealing,
once full completed, fast speed, east to operate, firm sealing,
beautiful and decent.
Advantage:
1. Ultrasonic sealing device to seal bags in good quality
2. Computer control, full automatic feeding, automatic counting,
full automatic stopping.
3. Easy to operate and strong sealing effective
4. Photocell to track the color
5. Equipped with servo motor
6. Equipped auto pneumatic punching device
7.Equipped with tension control device.
8. Machine has got CE Certification, SGS Certification, BV
Certification, company
has obation ISO9001:2008 certification, High quality, good machine
price.
Packaging & Delivery
Packaging Details: Cotton Pearl And Plastic Film Or Wooden box
Delivery Detail: 15 days after receiving order deposit.
About us:
Wenzhou All well Machinery Share Co.,Ltd. is a full new company. In
order to create more economic
and offer the one step service, we collect all the knowledge and
resource to service our customers
with complete solution in Non woven Industry in our field.
Including the Non woven Production Line,
Non woven Bag Making Machine and Non woven Printing Machine, which
we had exported to all
over the world in the past years.To work, practice conscience
first. We always carries a grateful
heart to service each customer carefully. Creating value for
customers is the only way to
achieve selfworth. Accompany with All well, there will be more
moving and less worries on your way
to be rich.
Please send us inquiry for more information, we will supply you
good machine price & good after
sales service.
Main Technical Variables:
Type | ONL-XB700 | ONL-XB800 |
Production Speed | 40-100PCS/MIN | 40-100PCS/MIN |
Bag Width | 200-580mm | 200-680mm |
Bag Length | 100-800mm | 100-800mm |
Loop handle length | 370-600mm | 370-600mm |
Loop handle thickness | 60-120G.S.M | 60-120G.S.M |
Bag making thickness | 35-100G.S.M | 35-100G.S.M |
Power supply | 220V 50Hz | 220V 50Hz |
Total power | 18KW | 22KW |
Overall size | 12000×2600×2000mm | 12000×2700×2000mm |
