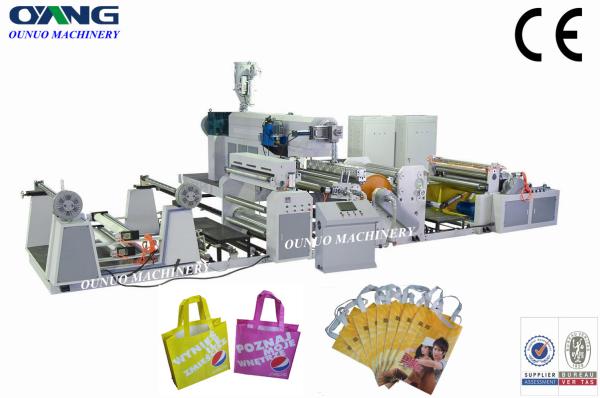

    Double Station Automatic Changing Rolls Laminating Film Machine High Precision

    Ask Lasest Price
    Brand Name : OUNUO
    Certification : CE
    Model Number : ONF-1600
    Delivery Time : 30 days
    Payment Terms : T/T,L/C at sight
    Supply Ability : 50 set/month
    • Product Details
    • Company Profile

    Double Station Automatic Changing Rolls Laminating Film Machine High Precision


    NAME:

    Full automatic non woven lamination machine high speed with CE certification


    MAIN FEATURES:

    Plastic non woven extrusion machine

    1.Double station,automatic changing rolls
    2.High precisin full-closed mould head
    3.PLC man-machine controller system


    TECHNIQUE PARAMETER:

    Specs

    1050mm,1250mm,1500mm,1700mm

    Working width

    950mm,1150mm,1400mm,1600mm

    Using material

    non-woven cloth

    Interlayer material

    BOPP

    Using colophony

    LDPE,PP(coating colophony)

    Extruder

    Ø100 Power: 37kw

    Quantity of extrusion

    180-280kg/h

    Thickness

    0.012mm-0.030m

    Uniformity of thickness

    <±5%

    Production speed

    100m/min-150m/min

    (According to the demands of different users)

    Unreeling Diameter

    Ø1300mm

    Diameter of Rewinding

    Ø1000mm-Ø1300mm

    Strain control

    wrapup and unreeling,interlayer unreeling automatic strain control

    Electric control mode of complete machine

    PLC program controller,man-interface operation

    Transducer

    Import AC digital vector control transducer

    Fixing size

    L 11000mm×W 7000-9000mm×H 3800mm



    RANGE OF APPLICATION:


    Paper-plastic complex, plastic-plastic complex, aluminum-plastic complex,
    Paper-aluminum plastic complex, plastic-woven complex,plastic-non woven complex series
