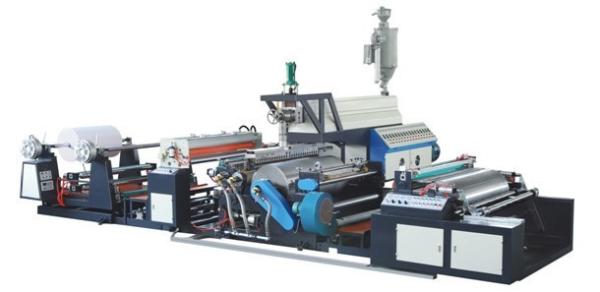

Working width

800mm,1150mm,1350mm,1550mm,2000mm

Base materials (one unreeling)

film,woven fabric,non woven fabric

Interlayer material

BOPP

Using colophony

LDPE,PP,etc (coating colophony)

Extruder

Ø90 Ø100 Power: 37kw 45kw

Quantity of extrusion

180-220kg/h

Thickness

0.012mm-0.050m

Uniformity of thickness

<±5%

Production speed

80m/min-150m/min

(According to the demands of different users)

unreelinging Diameter

MAX Ø1200mm Ø1500mm

Diameter of Rewinding

MAX Ø1500mm

Strain control

wrapup and unreeling,interlayer unreeling automatic strain control

Electric control mode of complete machine

PLC program controller,man-interface operation

Transducer

Import AC digital vector control transducer

Fixing size

L 10000mm×W 7000-9000mm×H 2850mm

Unwinding Unit

Double shafts turret type with automatic positioning splicer. Composed of AC vector motors,

the operating tension is controlled by pneumatically and low friction dancing roller

Optional

Rewinding Unit

(1) Double shafts turret type with automatic positioning splicer. Composed of AC vector motors,

the operating tension is controlled by pneumatically and low friction dancing roller

(2) Automatic Taper tensions can be easily adjusted on the touch panel according to the

different material specifications for curve, slope, or straight three setting modes

(3) Two additional touch rollers for both rewinding shafts are pneumatically pressure control

ensure the smoothness of the rewinding material without any sliding

Optional. one or two

In-feeding Unit

(1) Two rolls press type with pneumatically adjustable pressure control

(2) Tension controlled by low friction dancing roller between in-feed and first printing unit

Extrusion Unit

This machine uses high quality T-Die. The line speed, extrusion RPM and thickness can be

controlled and monitored through the touch panel to reach proper lamination

Trimming Device

The auto edge trimming device with shear cutter and web width is adjustable

Extrusion Laminating Unit

(1) The Cooling roll employs a mirror surface that can remove bubbles during laminating,

featuring in quick stripping and laminating flatly

(2) The Silica gluing roll and laminating cooling roll employ screw cooling unit, featuring in fast

cooling and that the cast film is easy to be formed
