Single Beam PP Non Woven Fabric Making Machine

Ask Lasest Price
Brand Name :	OUNUO
Certification :	CE
Model Number :	ONL-1600S,ONL-2400S;ONL-3200S; ONL-4200S
Delivery Time :	150~180 days
Payment Terms :	T/T,L/C at sight
Supply Ability :	20 set/month

Add to Cart

Product Details
Company Profile

Single Beam PP Non Woven Fabric Making Machine

Single Beam PP Non Woven Fabric Making Machine With 4200mm

Parts of PP non woven fabric making machine:

Recycle extruder ----> Main extruder ----> Filter ----> Metering pump ----> Monomer suction device ---> Spinning box ----> Quenching air chamber ----> Stretching device ----> Web former ----> Calender ---->Winder ----> Slitter

Spun-laid process and technical flow chart:

Additive(Recycling offcut fabric) ----> Raw materia l----> Melting ----> Filtering ----> Measuring ----> Spinning ----> Cooling ----> Stretching ----> Web forming ----> Calendering ----> Winding ----> Cutting----> Final product

specifications

Model No.	ONL-1600S	ONL-2400S	ONL-3200S	ONL-4200S
Working Width	1600mm	2400mm	3200mm	4200mm
Fabric GSM	9~250	9~250	9~250	9~250
Power Input	200KVA	250KVA	300KVA	450KVA
Consumption	130KW	180KW	200KW	260KW
Annual Output	1500T	2400T	3000T	5000T
Embossing Pattern	Diamond, Oval, Cross,Line

Fabric Usage

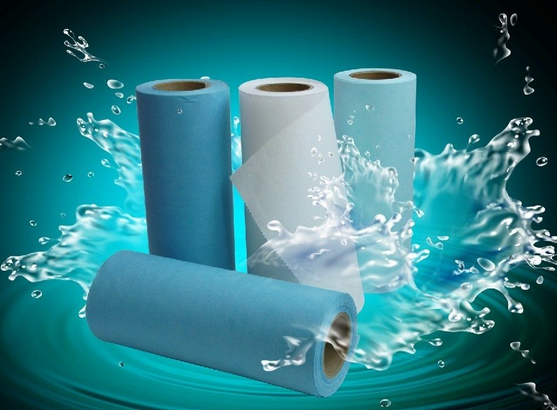

The equipment products non woven fabric with polypropylene(PP), adopts the technology of air drawing in to the web forming by negative pressure to make the PP spun bonded non woven fabric, the product is feature by uniform cover, great intensity, good breathable feature and good feeling, It is widely used for medical, household, hotel accessories, beauty care disposable product, Agricultural cover, clothes package and architecture.
