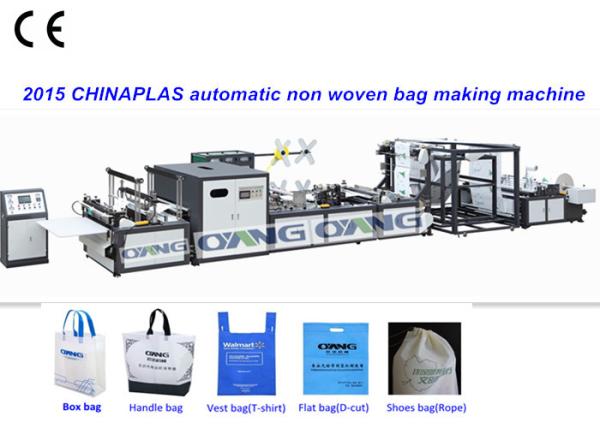

High Speed Eco Non Woven Bag Making Machine Zzipper / T-shirt Bag
Machine
Machinery Advantage:
1. Ultrasonic device to seal bags in good quality
2. Computer control, automatic feeding, automatic counting,
automatic stopping.
3. Easy to operate and strong sealing effective
4. Photocell to track the color
5. Equipped with servo motor
6. Equipped auto pneumatic punching device
7. Equipped with tension control device.
8. Machine has got CE Certification, SGS Certification, company has
obation ISO9001:2008 certification
Machinery Device:
1. One set computer with touch-screen system.
2. One the programmable controller.
3. Six sets of ultrasonic system.
4. Traction inverter to control the main motor
5. Micro-motor four.
6. Two sets of step motors.
7. High quality ultrsonic sealing device from Germany to make sure
the bag qulaity
Bags can make:
1-non woven hadle bag
2-non woven D-cut bag
3-non woven box bag with handle
4-non woven T-shirt bag
5-non woven shoes bag
6-non woven zipper bag
7-non woven laminating bag
Main parameters:
700Model |
Non woven bag | Flat bag | Handle bag | T-shirt bag | Box bag |
Non wove bag length(mm) | 100-800 | 100-800 | 100-800 | 100-800 |
Non woven bag width(mm) | 100-580 | 100-580 | 100-580 | 100-580 |
Bag making speed(pcs/min) | 20-100 | 20-80 | 20-80 | 20-60 |
Non woven fabric thickness(G/M2) | 30-100 | 30-100 | 30-100 | 30-100 |
Rewinding material width | 1300mm |
Machine weight | 2500kg |
Power Supply | 220V, 50HZ, Single Phase |
Total Power | 21kw |
Overall Dimension | 11000*1950*1800 |
Air compressor | 10.2kw |
Handle sealing part | 6 Set Top quality ultrasonic |
Loop handle length | 400-600mm |
Loop handle Width | 250-300mm |
Diameter | 800mm |
Handle loop fabric Weight | 60-120gsm |
non woven bag making machine details:
Our Advantage and Service
1.we have 8 senior engineers service in many countries, all the
year round, with our after-sales office in countries.my machines
can be monitored via Internet, solve customer requirements
immediately2.Our machines have one year guarantee and warranty,
life-long maintenance.
3.Has many machines can be monitored via the Internet, solve
customer requirements in a timely manner.
4.Has several senior,continuous innovation and reform, in order to
ensure the quality of mechanical stability.
5.According to each customer different request,we provide
individuation and specialization machine solution. Make sure you
spend less money, to get quality and suitable machine.
6.we always focus on non woven bag making machine and relevant
machine R&D since our company foundation.
