    Ultrasonic Non Woven Bag Making Machine High Speed For Different Bags

    Ask Lasest Price
    Brand Name : OUNUO
    Certification : CE
    Model Number : ONL-XA700
    Delivery Time : 30 days
    Payment Terms : T/T,L/C at sight
    Supply Ability : 40 set/month
    • Product Details
    • Company Profile

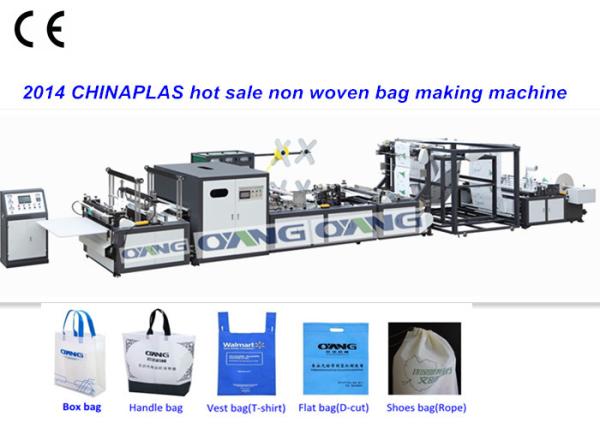

    Ultrasonic Non Woven Bag Making Machine High Speed For Different Bags


    Ultrasonic Non Woven Bag Making Machine High Speed For Different Bags

    Specifications:

    Machine Model

    ONL-XA700

    Production speed

    40-120pcs/min

    Bag width

    100-800mm

    Bag length

    200-580mm

    Loop handle Length

    370-600mm

    Loop handle thickness

    60-120G.S.M

    Loop fix speed

    40-60pcs/min

    No woven fabric specification(G.S.M)

    30-100 G.S.M

    Power supply

    220v,50Hz (60Hz available)

    Total power

    32KW

    Overall size

    15200×2600×2000mm straight layout
    15200×4400×2000mm vertical layout

    Total weight

    3200KGS



    Quick Detail:

    This non woven bag making machine is special design for non woven bag making, it can produce different kinds of non woven bag,such as non woven box type bag, vest bag, D-cut type bag, rope wearing type bag,non woven zipper bag,etc indifferent specifications and shapes. It combine the latest mechanical and electrical together as a whole, use ultrasonic sealing type and operation by touch screen,this machine equip auto punching device, automatic counting, setting counting alarm available either, it is an ideal equipment of non woven bag production.


    Description:

    1. We can control the ultrasonic device quality.we make it by ourself. We adopt German design and Japan electrical components.Special re-design the ultrasonic device suitable for non woven bag making.
    2. Taiwan Touch Screen,Automatic computer control, automatic feeding, automatic counting, automatic stopping.
    3. Easy to operate and strong sealing effective
    4. Photocell to track the color
    5. Equipped with double stepper motor feeding.
    6. Equipped auto pneumatic punching device
    7.Equipped with tension control device.
    8.Equipped auto loading device.easy operation.
    8. Machine has got CE Certification, we also get ISO9001:2008 certification.


    Machinery Features:

    This machine applies to nonwoven materials. It is high automatic machine to produce rice bag,
    Seed bag, chemical fertilizer bag etc.
    This machine has photocell to make printed bags. It is equipped with auto-counter, screen touch,
    PLC computer controller & servo motor driver, which can control bag length and cutting correctly.
    There is sewing attachment for sealing sides & bottom of bags to economize manpower.


    Applications :

    1-Box type bag with handle
    2-Flat bag with side gusset
    3-Flat bag(D-cut bag)
    4-T-shirt bag(U-cut or W-cut )
    5-Flat bag with handle
    6-Shoes bag(rope wearing bag)
    7-Laminating bag
    8-Zipper bag


    Competitive Advantage:

    1.Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.
    2.Machines with quality guarantee for one year, life-long maintenance.
    3.A lot of machines can be monitored via Internet, solve customer requirements immediately
    4.Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical Stability.
    5.Undertake various non-standard machinery, solve the customers' special requirements.
